Description

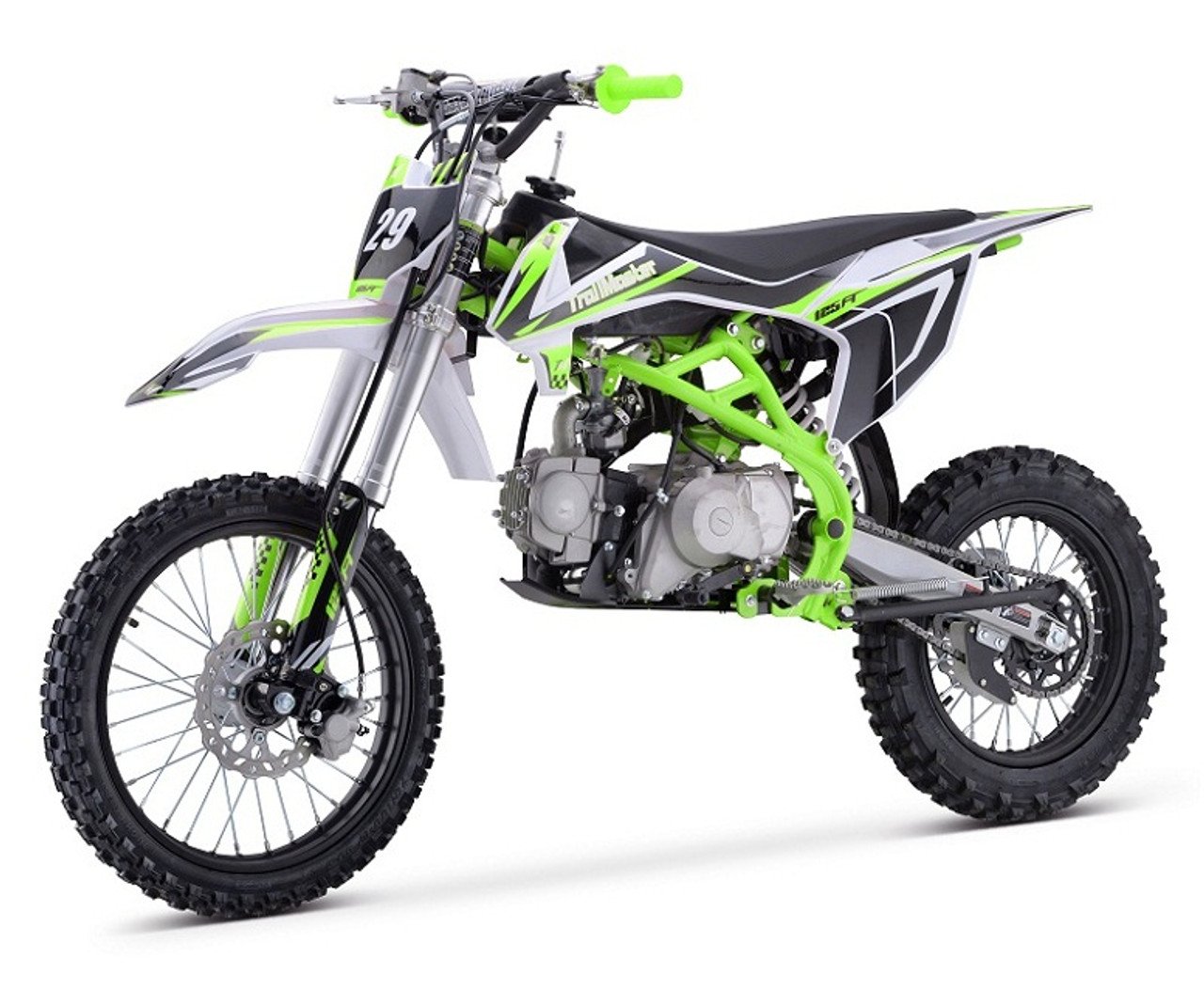

Trailmaster TM29 125cc Dirt Bikes, 4-Stroke, Electric Kick Start motorcycles for sale
- Powerful 125cc engine
- Electric and kick start, 4 gear manual clutch
- Large frame over 70 inches long (Bigger frame than TM24)
- 49.8 “ wheel base and 33.5” seat high
- Front tire 17”/Rear Tire 17”
- Hydraulic front and rear disc brakes
- Inverted front shock
- Large 1.2 gallon fuel tank
TECHNICAL SPECS
Parts breakdown set up manuel
| TM Dirt Bikes 27-29 | Parts |
General Information
- Engine Type ZM125cc, Single Cylinder, 4‐Stroke, Air Cooled
- Displacement 124 ml
- Max Power 8.3hp
- Max Torque 6.64 lbf.ft
- Compression Ratio 9.6:1
- Shift Type N‐1‐2‐3‐4, Four‐Gear Manual Shift
- Start Type: Electric & Kick Start
- Ignition CDI
- Min. Fuel Consumpetion: ≤367g/kw.h
- Max Range: ≤10.5mile
- Engine Oil #： SJ5W一30
- Transmission Chain Drive;#428，14/41T
Size Data
- Overall Size (Length×Width×Height): (Inches)71.3X28.9X43.3 / (mm)1811X734X1099
- Wheel Base 49.8″
- Seat Height 33.5″
- Ground Clearance 13″
- Fuel Capacity 1.2 Gal/4.5 L
- Tires FT: 70/100‐17 ‐ RR: 90/100‐14 Knobby tires
- Wheels Steel 1.6 x 17″ / 1.85 x 14″ Rims, Cast Hubs
Frame/Suspension/Brake/Wheel System
- Frame Twin Girders Steel Tube
- Front Fork Inverted 45*48‐735mm Forks, Non‐Adjustable
- Rear Shock ￠10*￠11*310mm ,Spring Per‐load
- Swing‐Arm Steel Tube 14inch
- Handle Bar Steel Crossbar ,L=720mm; Dia=22mm
- Front Brake Hydraulic Single Piston Caliper, 210mm Disc
- Rear Brake Hydraulic Single Piston Caliper, 190mm Disc
- Exhaust Steel Pipe with catalyst converter(EPA Standard)
- Packing Size(inch) 62.6×14.8×29.9”
- N.W: 143.3 LBS / 65 KG
- G.W: 172 LBS / 78 KG
Product Dimensions
• Length×Width×Height: (Inches)63*15*30 / (mm)1600*381*762
• Weight : (Lbs)172 / (Kg)78
