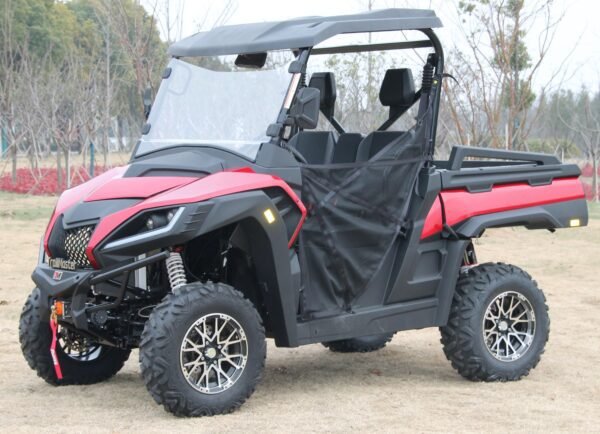

TrailMaster Panther 550 EFI UTV, Automatic Transmission, Heavy-Duty Suspension, Locking Differential & Digital Speedometer for sale
Unleash your off-road adventures with the TrailMaster Panther 550cc UTV for sale, a powerhouse designed for performance and durability. Equipped with a high-performance 498.6cc liquid-cooled engine delivering 34 HP and a maximum power of 24 kW, this UTV ensures robust power and reliability in any terrain.
The Panther 550cc features a rugged 4-wheel drive system with front and rear differentials, complete with lock capabilities for exceptional traction and control. A 3000 lb winch adds versatility, making it perfect for tough tasks and challenging trails.
Designed with a focus on comfort and adaptability, this UTV includes adjustable heavy-duty front and rear shock absorbers for a smooth ride over rough terrain. The flip cup holder adds convenience for your drinks on the go. With a crankshaft speed of 6300 rpm and a maximum power of 24 kW, the Panther 550cc delivers impressive performance.
This model comes in red, blue, green and Camo colors.
Key features:
- Hard top
- 3000lb-winch
- Windshield
- Side Nets
- Four Wheel Drive, Front and Rear differential with lock
- Liquid cooled high performance 498.6 cc 34 HP engine, with max power 24Kw
- Equipped with H/L gear, can climb up to 30 degree slopes with ease with full capacity
- Bench seat can fit up to 3 persons
- Flip cup holder
- Large storage space under seat
- Four-wheel independent suspension for much better driving experience
- EFI
- Digital speedometer/odometer
- LED Hi/Lo beam head light
- Rear view center and side mirrors
- Sporting steering wheel
- Turn signals
- Safety harness seatbelt
- Big off-road tires: F / R: 26 x9-14 / 26 x 11-14
- Polished aluminum wheels
- Front bumper
- Adjustable heavy duty front and rear shock absorber
- Rack and pinion steering wheel
- Front and rear hydraulic disc brake
- Large gas tank
- 12v power outlet
- Horn
Technical Specifications
Engine Information
- EPA Certification: Yes
- Engine Type: 4-stroke, Single Cylinder, Liquid Cooled
- Displacement: 498.6cc
- Compression Ratio: 10.2:1
- Max HP: 34 HP
- Bore & Stroke: 92 mm & 75 mm
- Max Power and Crankshaft Speed: 24/6300 kW/r/min
- Max Speed: 50 mph
- Climbing Ability: 30 degrees
- Ignition: ECU
- Fuel System: EFI
- Starting System: Electric
- Battery: 12V 30Ah
- Engine Oil: SAE 15W/40
General Information
- Transmission: Automatic, L-H-N-R, with Locking Differential
- Drive Train: Shaft Drive; 2WD-4WD
- Drive Mode: Four Wheel Drive, Front and Rear Differential with Lock
- Suspension, Front / Rear: Front MacPherson, Rear Dual A-ARM
- Brakes, Front / Rear: Both Hydraulic Brakes, Disc
- Tires, Front / Rear: 26 x 9-14 / 26 x 11-14
- Fuel Tank Capacity: 7.93 gallons
- Wheels: Aluminum
- Weight, N.W.: 1386 lbs (628 kg)
- Max Load: 1000 lbs
- Dump Bed Capacity: 550 lbs
- Towing Capacity: 820 lbs
Dimension Information
- Wheelbase: 74 in
- Length x Width x Height: 120.6 x 63.7 x 80.7 in (3063 x 1617 x 2049 mm)
- Seat Height: 18.9 in (From Floor Board to Seat)
- Min Ground Clearance: 11.4 in
- Dump Bed Size: 48 x 36.4 x 11.8 in
