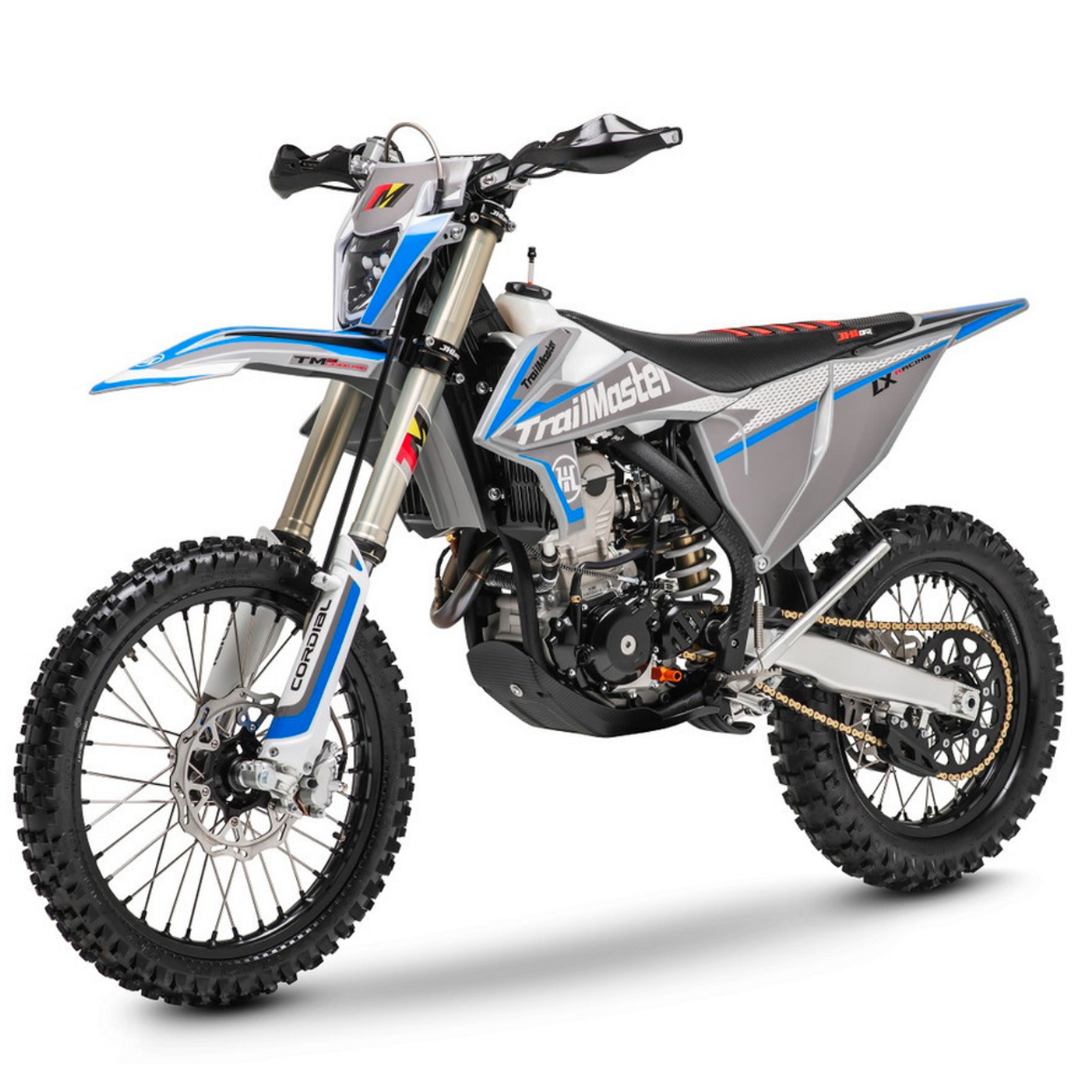

TrailMaster JHL Pro Series TM LX300 Pro Dirt Bike – 283cc Water-Cooled Engine for sale

Original price was: $6,000.Current price is: $4,000.

Category:

Description

TrailMaster JHL Pro Series TM LX300 Pro Dirt Bike – 283cc Water-Cooled Engine for sale

Get ready to conquer any terrain with the TrailMaster JHL Pro Series TM LX300 Pro Dirt Bike, now available on Tao Atv.com. Designed for both performance and durability, this bike is powered by a Zongshen NC300S 283cc single-cylinder, 4-stroke, water-cooled engine. The double overhead camshaft and balance shaft deliver a smooth ride with exceptional power and efficiency, producing up to 23 HP at 9000 RPM and a maximum torque of 25 N.m at 7000 RPM.

Built to tackle tough trails, the LX300 features a 6-speed transmission and EFI fuel system for optimized fuel consumption, along with electric and kick start options for convenience in any scenario. Engineered with high-strength 30 CrMo steel and an aluminium alloy frame, this dirt bike boasts front and rear disc brakes for reliable stopping power and a CHOCHO 520HDS chain drive for superior handling and durability.

Key design elements make this bike stand out, including dual adjustable inverted front shocks, a rear shock with adjustable compression and recovery damping, and a forged aluminium alloy rocker arm for precise control and comfort on uneven surfaces. The 37.43-inch seat height and 11.82-inch ground clearance give riders excellent posture and confidence for rugged terrain. With an aluminium alloy handlebar and CNC alloy unbreakable levers, durability and performance come together seamlessly.

The LX300 also includes advanced features such as LED headlights with lenses, turn signals, tail lights, and an LED speedometer for safe, illuminated rides. With high-quality aluminium alloy rims, alloy sprockets, and a stainless steel muffler, every detail is crafted for high performance and low maintenance. Optional upgrades include a 3A lithium battery for enhanced efficiency.

Whether you’re an experienced rider or a newcomer, the TrailMaster JHL Pro Series TM LX300 Pro on Tao Atv.com is your ultimate dirt bike companion, built to deliver thrilling off-road experiences.

These two models carry a lot of excellent selling features such as:

Product Features

  • 283cc Zongshen Engine with EFI: Powerful, water-cooled, and balanced for smooth performance.
  • Large Frame with 37.43-Inch Seat Height: Ideal for larger riders.
  • Dual Adjustable Inverted Shock Absorbers: Provides superior stability and control.
  • Triple Adjustable Rear Shock Absorber: Ensures a smooth and comfortable ride.
  • Performance Stainless Steel Muffler: Enhances exhaust flow and durability.
  • High-Quality LED Headlight with Lens: Offers excellent visibility.
  • CNC Forged Alloy Wheels: Durable and stylish.
  • High-Performance Japanese DID Chain: Ensures reliable power transfer.
  • CNC Alloy Unbreakable Levers: Built to withstand tough conditions.
  • CNC Forged Alloy Triple Clamps: Provides strength and stability.
  • 7 Series Aluminum Alloy Handlebar: Lightweight and strong.
  • Kenda Tires: Offers excellent grip and durability.
  • Waterproof Wire Harness: Protects electrical components from the elements.
  • Non-Slip Gripper Seat: Ensures rider stability.
  • Quality Front and Rear Disc Brakes: Provides reliable stopping power.

TECHNICAL SPECS



Engine Type Zongshen NC300S,Single cylinder,4-stroke,4-valve,water-cooling, double overhead camshaft, with balance shaft.
Displacement(cc) 283
Max Power 〔23(1±5%)〕/〔9000(1±5%)〕
Max Torque 〔25(1±5%)〕/〔7000(1±5%)〕
Compression Ratio 11.6
Shift Type 6 gears
Start Type Electric / Kick Start
Fuel supply EFI
Min. Fuel Consumpetion:  ≤354 g/kw.h
Minimum turning radius : 2500mm
Lubricant Type #: SJ_10W-40
Transmission: Chain Drive
Size Data
Overall Size (L x W x H) 2190*810*1290 mm / 86.28*31.91*50.82 Inch
Wheel Base 1500 mm /59.1 Inch
Seat Height 950 mm / 37.43 Inch
Ground Clearance 300mm /11.82 Inch
Fuel Capacity 7 L / 2.11 Gal
Wheels Aluminium alloy wheel rims, High Quality Alloy Hubs
Tires Cordial tire 21″/18″
Frame/Suspension/Brake system
Frame 30 CrMo steel,high strength
Front shock Front single chamber dual adjustable inverted shock absorbers, 54/60-950mm
Rear Shock Rear compression and recovery damping adjustable shock absorber
Rockerarm Forged aluminium alloy linkage
Upper and Lower Triple Clamps CNC forged aluminium alloy
Handle levers CNC alloy unbreakable levers
Handlebar 7 Series aluminium alloy
Front Brake Disc
Rear Brake Disc
Exhaust Stainless steel muffler
Fork Aluminium alloy welded fork
Chain CHOCHO 520HDS
Sprocket Alloy
Brake GG grade
With LED headlights with lens
With Turning lights/ Tail lights
With LED speedometer
With Rear mirrors
With Rear disc protection cover
Optional 3A Lithium battery
Packing and Loading
Packing Size 2200*460*1280 mm / 86.68 *18.12* 50.43 Inch
N.W/LBS 121  KGS  / 266.2 LBS
G.W/LBS 166  KGS / 365.2  LBS
