TrailMaster jhl Pro Series Dirt Bike tm LX300 – 283cc efi Engine for sale

Original price was: $5,000.Current price is: $3,500.

Category:

Description

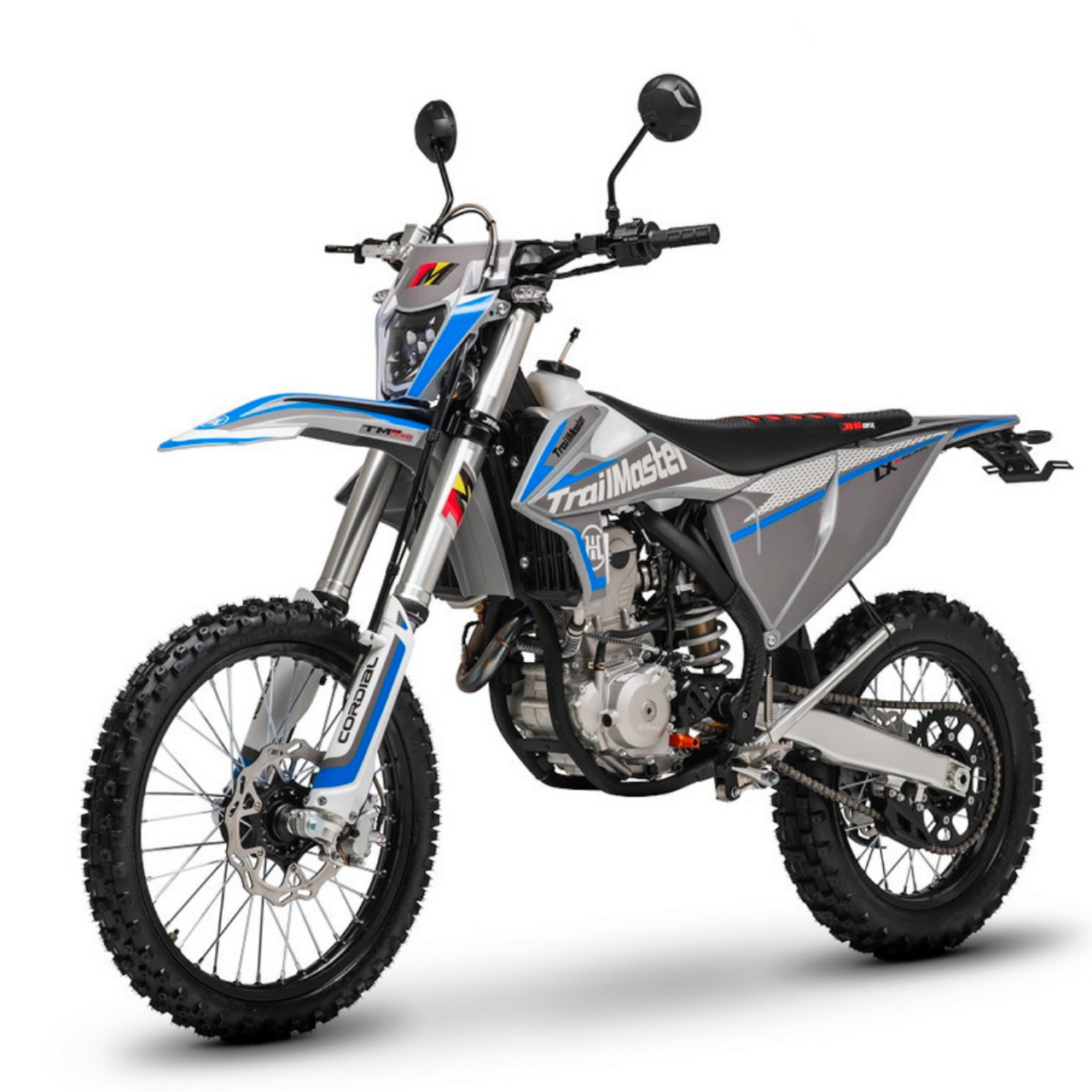

TrailMaster JHL Pro Series Dirt Bike TM LX300 – 283cc EFI Engine for Sale

Embark on your off-road adventures with the TrailMaster JHL Pro Series Dirt Bike TM LX300, available at Taoatv.com. Powered by a robust water-cooled 283cc Zongshen balance shaft engine with EFI, this dirt bike offers unparalleled performance and reliability. Featuring a large frame with a 37.43-inch seat height, the TM LX300 ensures comfort and control on rugged terrains. It boasts inverted dual adjustable front shocks and high-quality rear dual adjustable absorbers for superior suspension and handling. Enhancements include a performance stainless steel muffler, high-quality LED headlight with lens, CNC forged alloy wheels, and high-performance CHOCHO 520HDS chain. Designed for durability, it also features CNC alloy unbreakable levers, forged alloy upper and lower triple clamps, a 7 series aluminum alloy handlebar, and a waterproof wire harness. Additional amenities such as a non-slip gripper seat, quality front and rear disc brakes, rearview mirrors, turn signals, speedometer, and tail light make the TM LX300 a complete package for any adventure enthusiast.

These two models carry a lot of excellent selling features such as:

Product Features

  • Powerful water-cooling 283cc Zongshen balance shaft engine with EFI
  • Large frame with 37.43-inch seat height
  • Inverted 54/60-950mm dual adjustable front shock absorber
  • High-quality rear dual adjustable absorber
  • Performance stainless steel muffler
  • High-quality LED headlight with lens
  • CNC forged alloy wheels
  • High-performance CHOCHO 520HDS chain
  • CNC alloy unbreakable levers
  • CNC forged alloy upper and lower triple clamps
  • 7 series aluminum alloy handlebar
  • Waterproof wire harness
  • Non-slip gripper seat
  • Quality front and rear disc brakes
  • Equipped with rearview mirrors, turn signals, speedometer, and tail light

TECHNICAL SPECS



Engine Type Zongshen NC300S,Single cylinder,4-stroke,4-valve,water-cooling, double overhead camshaft, with balance shaft.
Displacement(cc) 283
Max Power 〔23(1±5%)〕/〔9000(1±5%)〕
Max Torque 〔25(1±5%)〕/〔7000(1±5%)〕
Compression Ratio 11.6
Shift Type 6 gears
Start Type Electric / Kick Start
Fuel supply EFI
Min. Fuel Consumpetion:  ≤354 g/kw.h
Minimum turning radius : 2500mm
Lubricant Type #: SJ_10W-40
Transmission: Chain Drive
Size Data
Overall Size (L x W x H) 2190*810*1290 mm / 86.28*31.91*50.82 Inch
Wheel Base 1500 mm /59.1 Inch
Seat Height 950 mm / 37.43 Inch
Ground Clearance 300mm /11.82 Inch
Fuel Capacity 7 L / 2.11 Gal
Wheels Aluminium alloy wheel rims, High Quality Alloy Hubs
Tires Cordial tire 21″/18″
Frame/Suspension/Brake system
Frame 30 CrMo steel,high strength
Front shock Front single chamber dual adjustable inverted shock absorbers, 54/60-950mm
Rear Shock Rear compression and recovery damping adjustable shock absorber
Rockerarm Forged aluminium alloy linkage
Upper and Lower Triple Clamps CNC forged aluminium alloy
Handle levers CNC alloy unbreakable levers
Handlebar 7 Series aluminium alloy
Front Brake Disc
Rear Brake Disc
Exhaust Stainless steel muffler
Fork Aluminium alloy welded fork
Chain CHOCHO 520HDS
Sprocket Alloy
Brake GG grade
With LED headlights with lens
With Turning lights/ Tail lights
With LED speedometer
With Rear mirrors
With Rear disc protection cover
Optional 3A Lithium battery
Packing and Loading
Packing Size 2200*460*1280 mm / 86.68 *18.12* 50.43 Inch
N.W/LBS 121  KGS  / 266.2 LBS
G.W/LBS 166  KGS / 365.2  LBS
