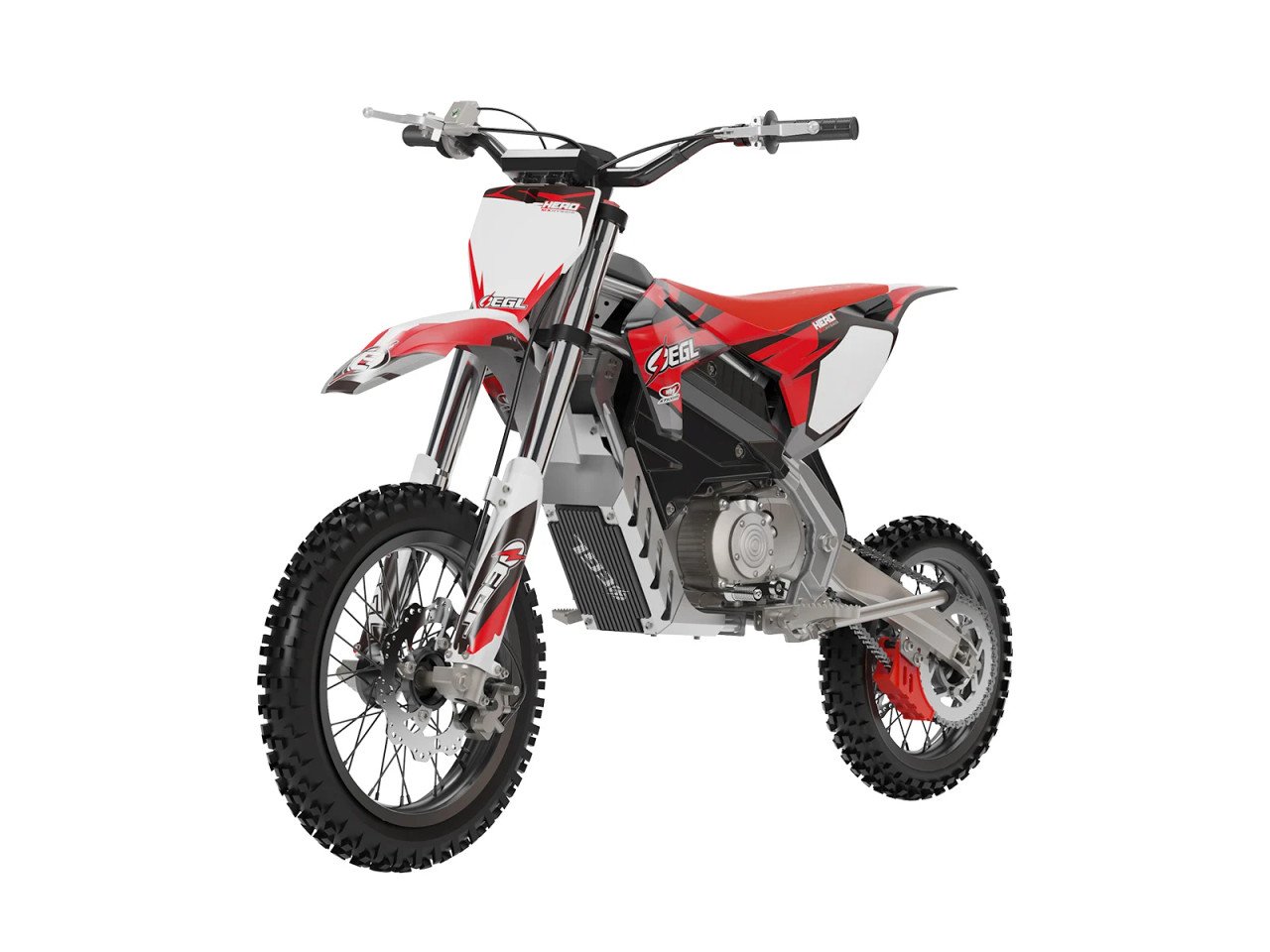

Experience the future of off-road riding with the HEAD 200 Electric Dirt Bike, designed for thrill-seekers and adventurers of all levels. Featuring a powerful 2000W motor with 64V voltage, this bike delivers responsive torque, adjustable 4-gear transmission with three power modes, and a state-of-the-art dual-beam frame for durability and adaptability. With premium suspension, hydraulic brakes, and an IP65 waterproof design, the HEAD 200 ensures a smooth, safe, and exhilarating ride across any terrain. Available now at Tao Atv.com, where quality meets performance.

FEATURES

Adjustable Ride Modes: 4-gear transmission with low, medium, and high power settings for versatile performance.
High-Performance Electric Engine: 2000W motor with 64V voltage, offering 50 Nm torque and 6800 RPM speed for thrilling acceleration.
Advanced Battery System: 64V 24Ah battery with a 24Ah charger, fully charges in 8 hours, with quick 20-80% charging in 4.5 hours.
Durable Dual-Beam Frame: Enhanced impact resistance, adaptable for electric and gasoline-powered setups.
Premium Suspension: Front fork with adjustable compression, rebound, and preload; rear shock with superior damping performance.
Hydraulic Brakes: Lightweight wave discs for easy control and precise braking.
Protective Features: Battery cover, IP65 waterproof plug, and shock protector ensure durability in rugged environments.
Ergonomic Design: Built for both beginner and experienced riders with adjustable features to grow with the rider’s skill level.

TECHNICAL SPECS

Dimensions (L×W×H) (mm): 1560*740*1100
Ground Clearance (mm) : 280
Top Speed (km/h) : 80
Range (km) : 35
Rim Type : Aluminum hub/ steel rim
Wheelbase (mm): 1100
Curb Weight (kg): 74
Horsepower (hp): 12
Brake Type : Front/rear disc brakes
Tire Specifications (Front/Rear): Front 60/100-14, Rear 80/100-12 (Off-road tires)
Model Name : SL122-11
Rated Power (W): 2000
No-load Current (A): 3.1
Rated Torque (Nm): 10
Max Torque (Nm): 50
Gear Ratios : 3.25/1.9/1.3/0.9
Clutch Type: Manual clutch
Manufacturer : CQSL
Voltage (V): 64
Rated Speed (RPM): 3500
Max Speed (RPM): 6800
Primary Gear Ratio: 2
Gear : 4 Gear
Transmission Type : Chain drive
Controller Model Name : AE2102
DC Bus Capacity (A) : 100
Protection Rating : IP65
Operating Voltage (V) : 30-86
Protection Mechanisms : Undervoltage, overvoltage, overcurrent, overheating (programmable)
Battery : 64V 24AH (Ternary material)
Max Continuous Discharge Current : 100A
Instant Overcurrent Protection : 120A
Max Continuous Charge Current : 50A
Undervoltage Protection : 50.0V or (when any cell voltage reaches 2.50V)
