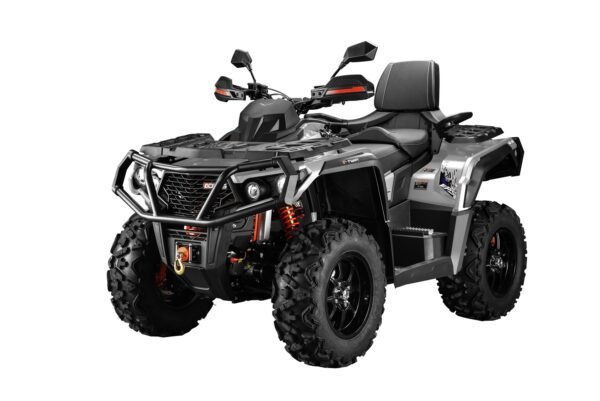

Aodes Pathcross 1000 L EFI/EPS 4×4 Atv for sale
MULTI-FUNCTION INSTRUMENT
Vehicle speed, Engine Speed, total miles, Turn signal (left, right). Headlight (High / Low beam), EPS indicator, ECU, Fuel Level, Coolant Temp, Park indicator, oil indicator, Battery indicator and brake failure indicator all integrated.
ADJUSTABLE FRONT DIFFERENTIAL SYSTEM & AUTOMATIC REAR DIFFERENTIAL SYSTEM
Do you have to cope with ruts, dirt, hairpin curves, and secluded areas?
PathCross’s ability to engage both the front and rear differential systems means you can drive with confidence. This improves performance over uneven ground.
HIGHER GROUND CLEARANCE, LONGER TRAVEL OF SUSPENSION
Are you looking to conquer more difficult and rough terrains or experience greater thrills?
Pathcross has a 10″ ground clearance and a 9.5″ travel suspension, which improves vertical travel and allows you to ride
ONE BRAKE PEDAL FOR ALL FOUR WHEELS
The stopping force of the hydraulically actuated, four-wheel DISC brakes is transmitted to all four wheels with a single brake pedal push.
FEATURES
- Gauge: Multifunction Digital Display
- Parking brake type: Handle brake
- Lighting: LED headlight, LED tail lights
- Front Winch: 3500 LBS
- Protection: Front & Rear Bumper, Side Fender, Handle Bar Protector
Package Highlights:
-
- 59″ Longer Wheelbase
- Backrest
- Adjustable Coilover Shocks
- Four Alloy Rims
- Multifunction Digital Display
- Towing Hitch w/ Trailer Ball
- Electric Power Steering System
- Front 3500LBS Winch
- Front & Rear Double A-Arms
Technical Specifications:
| Engine | |
|---|---|
| Type | V-Twin Cylinder, 4-Stroke, Liquid Cooled |
| Fuel Delivery System | Electronic Fuel Injection (EFI) |
| Transmission & Drive Train | |
| Transmission way | Shaft drive |
| Drive Train | 2WD-4WD |
| Suspensions | |
| Front Suspension | Independent Double A-Arm |
| Rear Suspension | Independent Double A-Arm |
| Shocks | Adjustable Coilover Shocks |
| Wheels | |
| Front | 26×9-R14 Alloy Wheel |
| Rear | 26×11-R14 Alloy Wheel |
| Brakes | |
| Front | Disc brake |
| Rear | Disc brake |
| Dimensions & Capacities | |
| Curb Weight | 924 lbs |
| Gross Vehicle Weight | 1078 lbs |
| Length × Width × Height | 96 × 49 × 55 in |
| Wheelbase | 59 in |
| Minimum Ground Clearance | 10 in |
| Rack Capacity (Front/Rear) | 75/150 lbs |
| Fuel Capacity | 4.8 gal |
